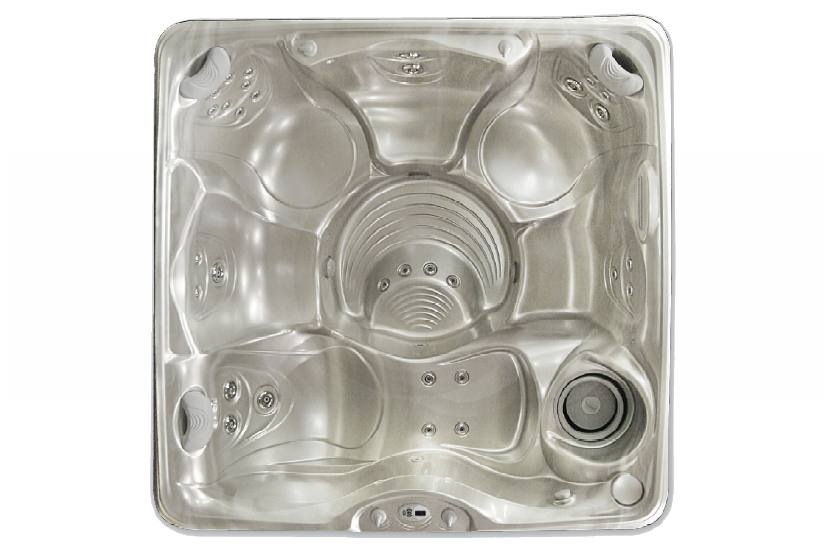

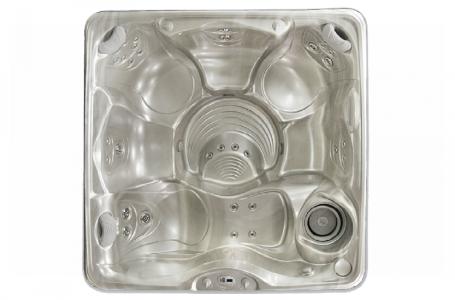

Hot Spot Relay™ Spa
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview



    Specifications
    • Seating Capacity: 6 Adults.
    • Dimensions: 7 ft x 7 ft x 36 in H (2.13 m x 2.13 m x .91 m H).
    • Water Capacity: 360 gal (1,363 l)
    • Weight: 706 lbs (320 kg) dry, 4,636 lbs (2,103 kg filled)
    • Spa Shell: Acrylic.
    • Lighting: 10 multi-color LED points of light, dimmable.
    • Entertainment Systems (Optional): Integrated MP3 Sound System, Wireless Sound System, Wireless TV & Sound System.
    • Jets - 35 (all with stainless steel trim): 5 Directional Hydromassage jets, 3 Rotary Hydromassage jets, 27 Precision Directional Hydromassage jets.
    • Water Feature: Yes.
    • Control System: IQ 2020® 230v / 50 amp, 60 Hz. Includes G.F.C.I. protected sub-panel.
    • Heater: No-Fault® 4000 w (230 v).
    • Jet Pump 1: Wavemaster® 6000; Two-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque.
    • Jet Pump 2: Wavemaster® 6500; One-speed, 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque.
    • Ozone System (Optional): FreshWater® III Corona Discharge
    • Effective Filtration Area: 65 sq. ft, Top Loading.
    • Vinyl Cover 3.5 in to 2.5 in Tapered, 2 lb. Density Foam Core. Available in Ash or Rust.
    • Cover Lifter (Optional): CoverCradle®, CoverCradle II, Lift ‘n Glide® or UpRite®
    Shell Colors
    • Champagne Opal
    • Pearl
    • Sand
    Cabinet Colors
    • Coastal Gray
    • Redwood
    NOTES:

    Full weight includes water and 6 adults weighing 175 lbs. each.


    Specifications

    Dimensions/Capacities
    Exterior Dimensions 7 ft x 7 ft x 36 in H (2.13 m x 2.13 m x 0.91 m H)
    Seating Positions 6 Adults
    Number of Jets 35
    Water Capacity 360 gal (1,363 l)
    Weight, Dry 706 lbs (320 kg)
    Weight, Full 4,636 lbs (2,103 kg)
    Electrical Requirements
    Motor/Pump Pump 1: Wavemaster® 6000; Two-speed 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque, Pump 2: Wavemaster® 6500; One-speed 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque
    Heater No-Fault® 4000w / 230v
    General
    Audio/Visual System Integrated MP3 Sound System, Wireless Sound System, Wireless TV & Sound System
    Lighting 10 multi-color LED points of light, dimmable
    Color Champagne Opal, Pearl, Sand
    Filtration System 65 sq. ft, Top Loading

    Compare Models










    Year 2010
    Manufacturer Hot Spot
    Model Relay™ Spa
    Style Above Ground
    Dimensions/Capacities
    Exterior Dimensions 7 ft x 7 ft x 36 in H (2.13 m x 2.13 m x 0.91 m H)
    Seating Positions 6 Adults
    Number of Jets 35
    Water Capacity 360 gal (1,363 l)
    Weight, Dry 706 lbs (320 kg)
    Weight, Full 4,636 lbs (2,103 kg)
    Maximum Flow Rate
    Electrical Requirements
    Motor/Pump Pump 1: Wavemaster® 6000; Two-speed 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque, Pump 2: Wavemaster® 6500; One-speed 1.5 HP Continuous Duty, 3.2 HP Breakdown Torque
    Heater No-Fault® 4000w / 230v
    General
    Audio/Visual System Integrated MP3 Sound System, Wireless Sound System, Wireless TV & Sound System
    Lighting 10 multi-color LED points of light, dimmable
    Color Champagne Opal, Pearl, Sand
    Filtration System 65 sq. ft, Top Loading
